  Many readers probably first encountered “procedural art” in an elementary-school information technology class, where the textbook introduced a fascinating program called Turtle Graphics. Think back: how did we make the little turtle move? With code. In 1996, Seymour Papert and Wally Feurzig invented Logo, a language designed to teach children programming, and we used it to direct a turtle as it drew on the screen. As technology has evolved, however, Logo has gradually faded from view, and mainstream approaches to drawing have changed as well.
  This article explains how to use a shader language—referred to below simply as Shader—to draw a 3*3 checkerboard. I use UE4 for the demonstration. If you are interested, you can try the algorithm presented here in Unity or on an online rendering site such as ShaderToy.
  Why begin a series on procedural art with a checkerboard? Drawing a checkerboard is one of the more basic tasks in procedural art: the algorithm is simple, and its result can be worked out easily. That makes it approachable for readers who are interested in Shader but do not know it well. Because the article does involve some technical terms, however, it is recommended for readers with some background in computer graphics. With that said, let's begin.

Getting Started

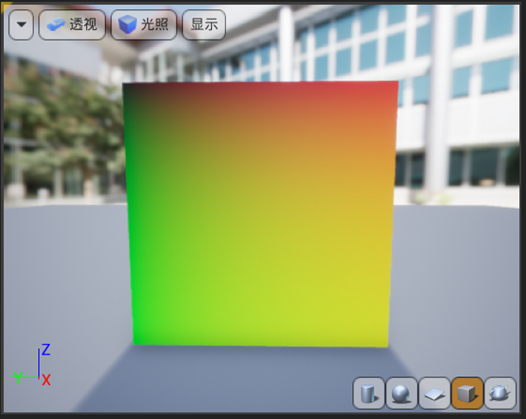

  Open UE4's powerful Shader Graph and get ready to draw. The first step is to connect the texcoord node—a set of texture coordinates—to base color on the output root node. The result looks like this:


  What exactly are we looking at, and how was it produced? (It really does resemble some kind of fruit.) First, remember that the texcoord node stores a set of texture coordinates ranging from 0 to 1. If we take the upper-left corner of the rectangle in Figure 1 as the origin and point the y-axis downward, texcoord's coordinate (0, 0) refers to the upper-left corner, while (1, 1) refers to the lower-right. We have also connected the texcoord node to base color, which expects a Vector3 variable—the three components of RGB—as its output. Texture coordinates are Vector2 values, so one component is missing. Fortunately, the engine automatically supplies 0 as the third component. The color at the upper-left is therefore (0, 0, 0), or black, while the color at the lower-right is (1, 1, 0), or yellow.

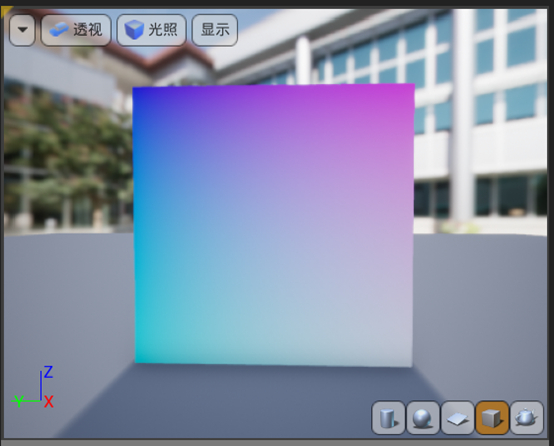

  To check this idea, we can manually set the third component to “1.” When this value is fed into base color, we get the result shown below. Here, the output at the upper-left is (0, 0, 1), while the output at the lower-right is (1, 1, 1), just as expected.


Mathematical Processing

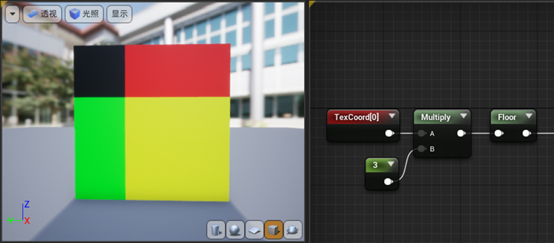

  Our data is now perfectly continuous. To produce distinct checkerboard squares, we need to turn that continuous data into discrete “steps.” We can do this by introducing the Floor function to round the coordinates down. Floor rounds decimal values down and gives us one segment of data. But we need three rows and three columns. Multiplying by 3 produces three segments, as shown below:


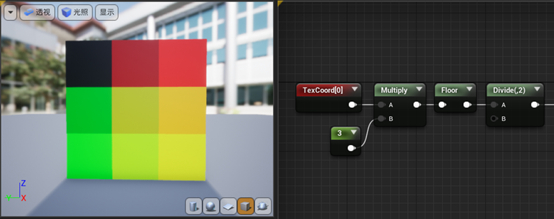

  The result does not look quite right. That is because any color component above 1 is treated as 1, making several regions appear identical. The data for the lower-right square is actually (2, 2, 0), but its displayed output is (1, 1, 0), which is yellow. Dividing the data by 2 gives all nine squares distinct colors, as shown below:


  We are now close to the final result. Look at the current board. The data for each square is:
1
2
3
(0, 0, 0)      (0.5. 0, 0)      (1, 0, 0)
(0, 0.5, 0)    (0.5. 0.5, 0)    (1, 0.5, 0)
(0, 1, 0)      (0.5. 1, 0)      (1, 1, 0)

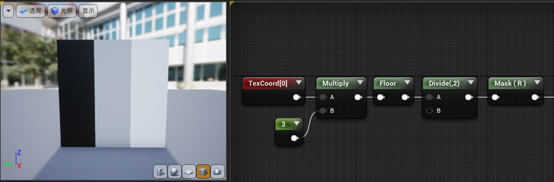

  You have probably spotted the interesting pattern. If we output only the R-channel value of each square, we get vertical stripes in black, gray, and white, as shown below. If we output only the G-channel value of each square, we get horizontal stripes in those same three colors:

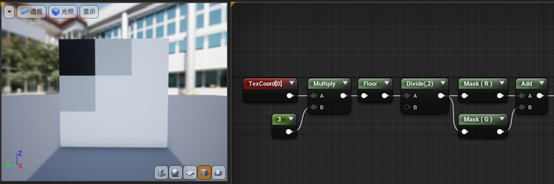

  Could we create the checkerboard by adding the R and G channels? No—we would get the result shown below:

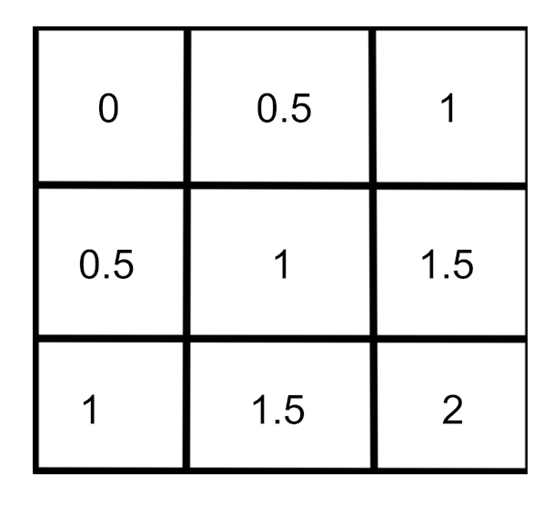

  The result is disappointing because every component above the limit is automatically clamped to 1. Our checkerboard draft also contains gray blocks, while we want a black-and-white board whose final output can only be (0, 0, 0) or (1, 1, 1). How can we achieve that? At this point, the mathematical result for the nine-square grid looks like this:


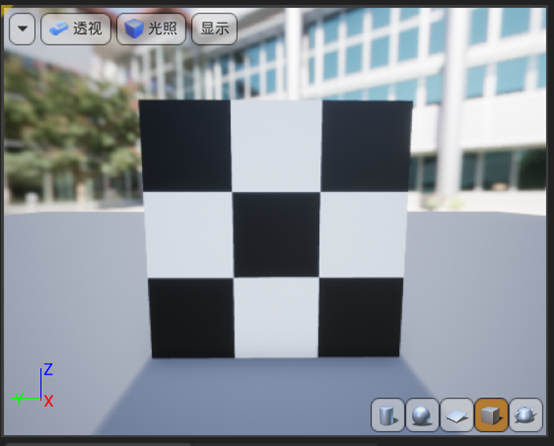

  Taking only the fractional part now gives us a fairly good “gray-and-white checkerboard.” To turn it into a black-and-white checkerboard, we simply multiply the gray value (0.5, 0.5, 0.5) by 2. The final result is shown below. To increase the number of rows and columns, multiply texcoord by a larger value before applying the floor operation.
